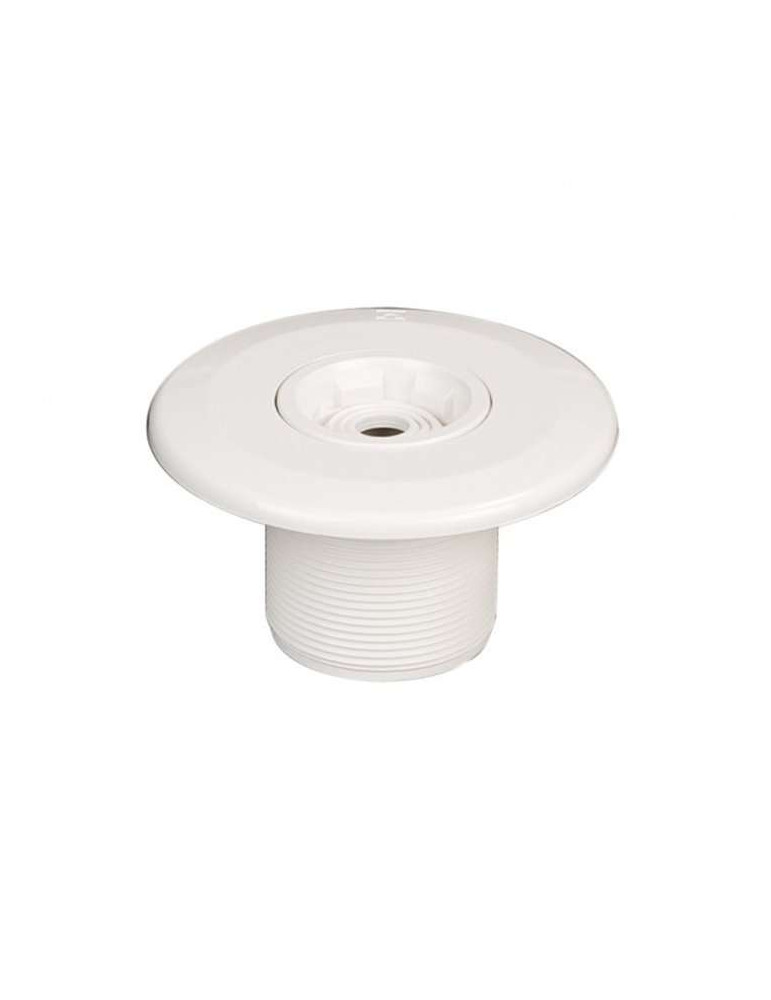

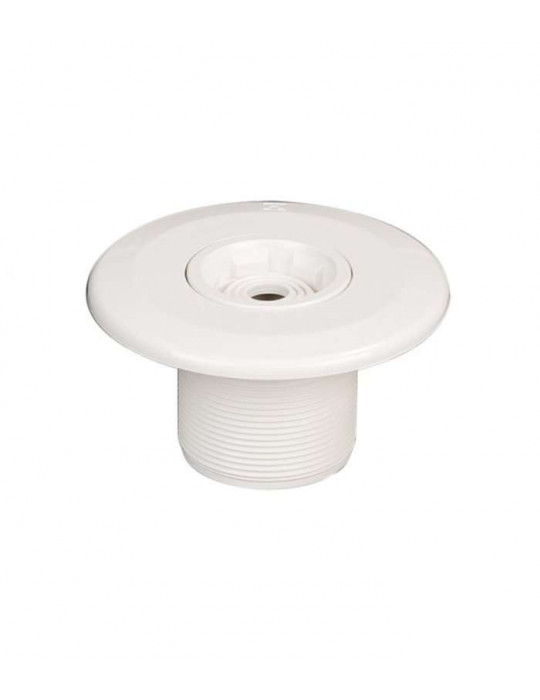

Multiflow drive nozzle thread
116288
Delivery Policy
Delivery between 48 – 72 hours
Return Policy
Maximum period 15 calendar days from receipt.
MULTIFLOW SYSTEM This system consists of the nozzle ball being supplied pre-marked with a series of diameters (14-20 and 25). With the help of a punch (also supplied next to the nozzle) one of the diameters can be selected at the time of installation. Maximum flow recommended for a maximum passage speed of 4 m/sec., according to EN 13451-1: Ø 14 = 2.2 m3/h, Ø20 = 4.5 m3/h, Ø25 = 7 m3/h Outer thread 2", and inner gluing Ø 50. Built in white ABS. Installation in grommets is recommended. The holes in the grid do not exceed 8 mm according to EN 13451-1. According to the standards: EN 16582-1 EN 16713-2 REF. 00295
