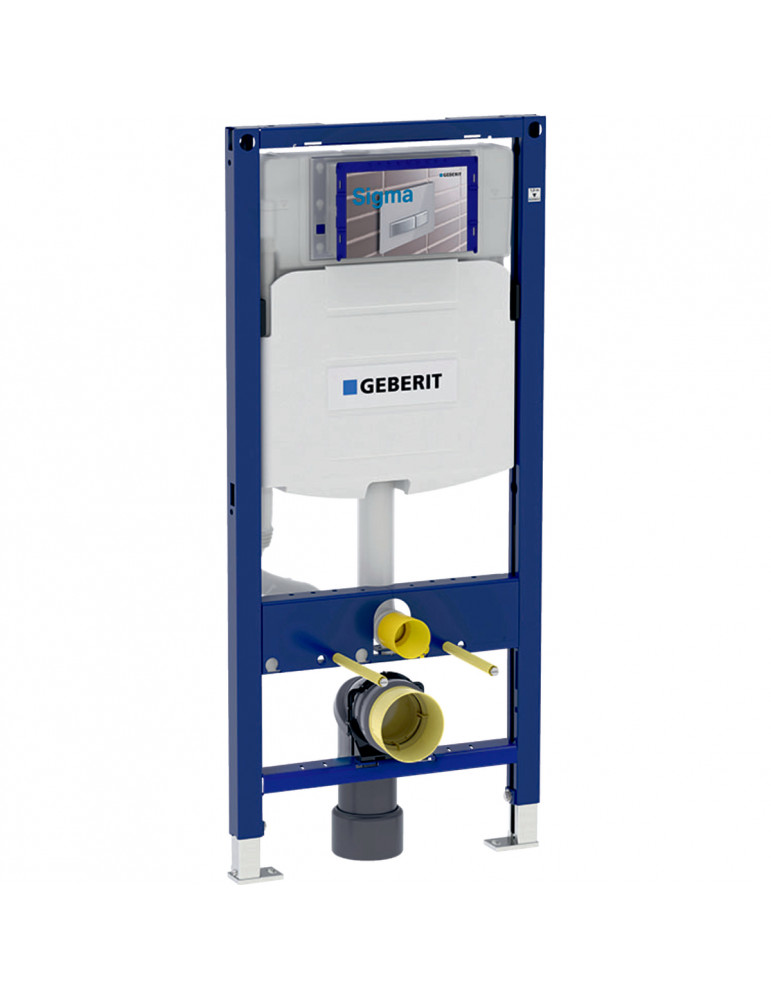

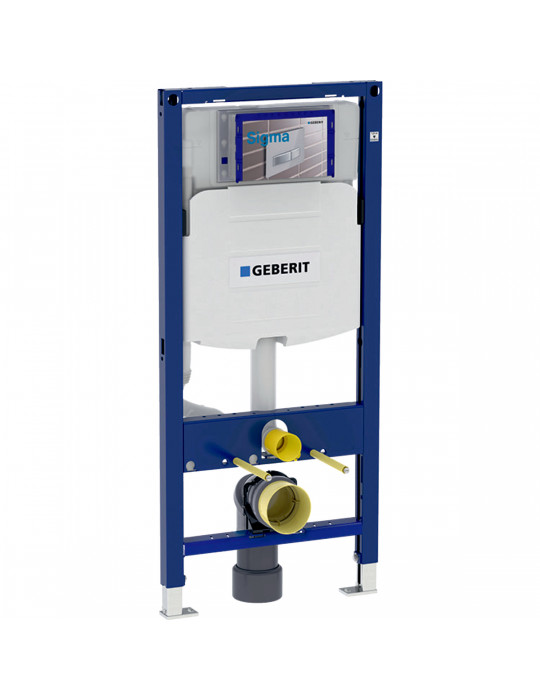

Duofix Geberit frame for suspended toilet with Sigma recessed cistern 12 cm

Duofix Geberit frame for suspended toilet, 112 cm, with Sigma recessed cistern 12 cm, PVC drain elbow. Self-supporting frame with baked powder paint with holes of ø 9 mm for fixing in construction with wooden panel for ceramic toilet supports with reduced support surface.

For suspended toilets with connection measures according to EN 33:2011 with projection up to 62 cm. For single, dual-volume or interruptible downloads.

Measures: 50 cm wide x 112 cm high x 12cm deep

REF. 111.374.00.5

Characteristics:

• For light wall mounting.
• For wall installation with full height or in front of wall with partial height.
• For wall installation with full height.
• For screed heights of 0–20 cm.
• Galvanized support legs.
• Adjustable support leg 0–20 cm.
• Support legs with non-slip properties.
• Adjustable support plates.
• Depth of the support plates suitable for installation in U, UW 50 and UW 75 profiles, and rail rails Geberit Duofix.
• Mountable drain elbow without tools in different.
• Depth positions, adjustment area of 45 mm.
• Drainage elbow adjustable to sleeve for horizontal drainage backwards.
• Acoustically insulated drainage elbow fixation.
• Recessed cistern with front drive.
• Recessed cistern completely insulated against condensation.
• With factory settings, immediate rinsing is possible.
• Assembly and maintenance in the recessed cistern without tools.
• Rear or higher supply connection in the center.
• Pre-assembly box for moisture and dirt.
• Pre-assembly box for registration, can be trimmed.
• With the possibility of fixing for electrical connection.
