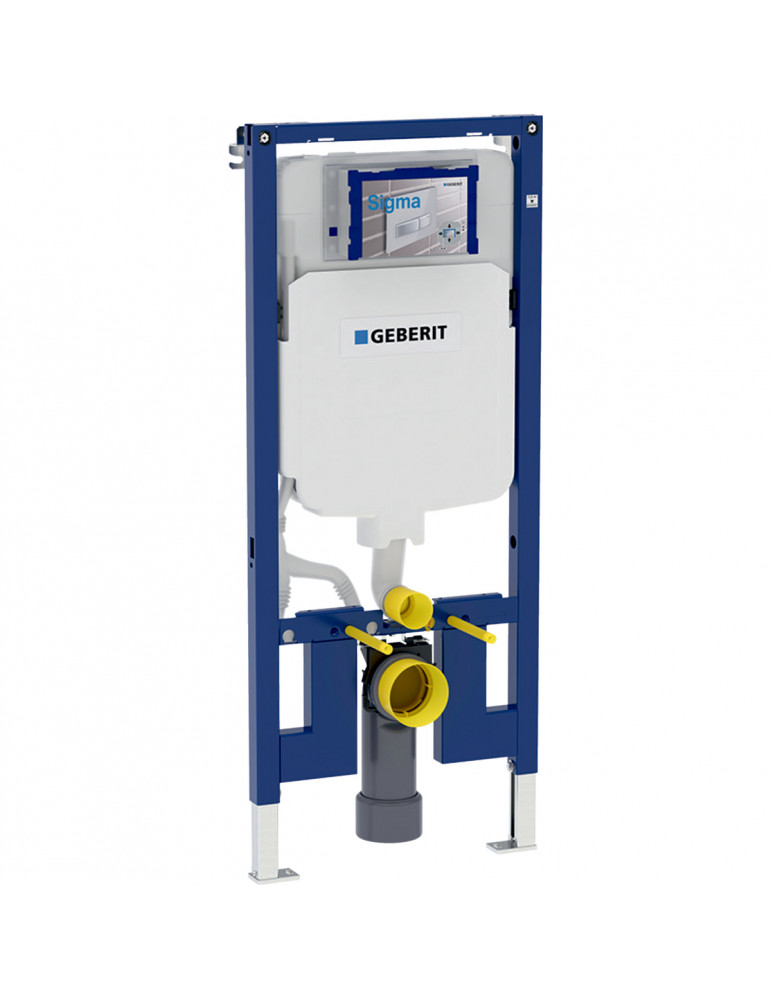

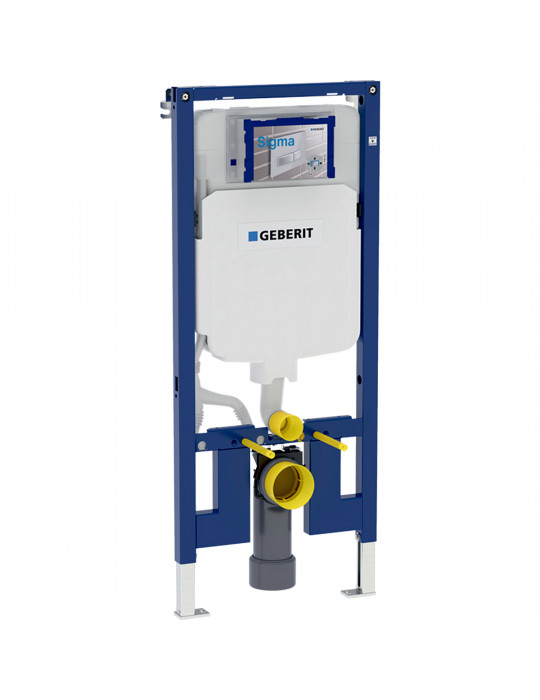

Duofix Geberit frame for suspended toilet with Sigma recessed cistern 8 cm

Duofix Geberit frame for suspended toilet, 114 cm, with Sigma 8 cm recessed cistern, PVC drain elbow. Self-supporting frame with baked powder paint with holes of ø 9 mm for fixing in construction with wooden panel. For suspended toilets with connection measures according to EN 33:2011 with an extended projection of up to 75 cm. For single, dual-volume or interruptible downloads.

Measures: 50 cm wide x 114 cm high x 8 cm deep

REF. 111.791.00.1

Characteristics:

• For light wall mounting.
• For wall installation with full height or in front of wall with partial height.
• For wall installation with full height.
• For screed heights of 0–30 cm.
• Frame suitable for ceramic toilets with reduced support surface (in case of pressure-resistant wall cladding).
• Galvanized support legs.
• Support legs with continuous height regulation.
• Support legs with non-slip properties.
• Support plate depth suitable for installation in U-profile, UW 50 and rail rail Geberit Duofix.
• Mountable drain elbow without tools in different depth positions.
• Elbow of drain mountable in vertical position in position of front depth.
• Elongated drainage elbow, for connection on the ground.
• Acoustically insulated drainage elbow fixation.
• Recessed cistern with front drive.
• Recessed cistern completely insulated against condensation.
• With factory settings, immediate rinsing is possible.
• Assembly and maintenance in the recessed cistern without tools.
• Upper left supply connection.
• Pre-assembly box for moisture and dirt.
• Pre-assembly box that can be trimmed, suitable for flush pushbuttons.
• With the possibility of fixing for electrical connection.
