Duofix Geberit frame for suspended toilet with omega 12 cm recessed cistern

Duofix Geberit frame for suspended toilet, 82 cm, with omega 12 cm recessed cistern. Self-supporting frame with baked powder paint, with holes of ø 9 mm for fixing in construction with wooden panel and prepared for ceramic toilet supports with reduced support surface. For suspended toilets with connection measures according to EN 33:2011 and with projection up to 62 cm.

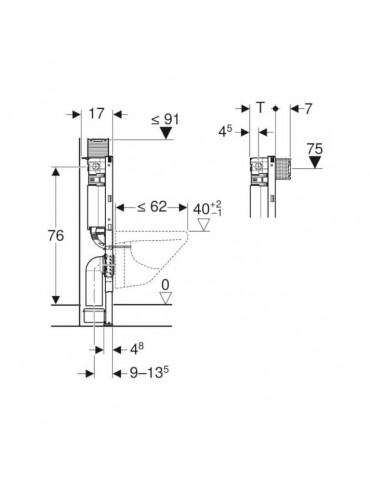

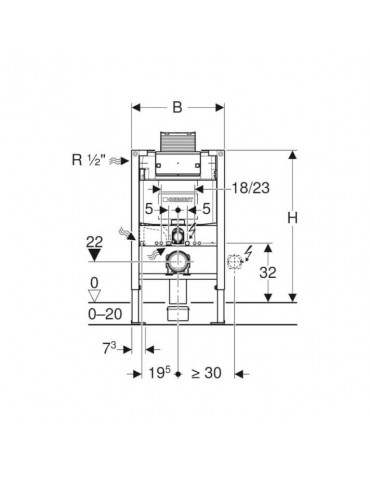

Measures: 50 cm width x 14 cm depth x 82 cm height REF.111.003.00.1

Characteristics:

• For light wall mounting.
• For installation in front of wall with partial height.
• For screed heights of 0–20 cm.
• Galvanized support legs.
• Adjustable support leg 0–20 cm.
• Support legs with non-slip properties.
• Adjustable support plates.
• Depth of the support plates suitable for installation in U, UW 50 and UW 75 profiles, and rail rails Geberit Duofix.
• Tool-free mountable drain elbow in different depth positions, adjustment area of 45 mm.
• Acoustically insulated drainage elbow fixation.
• Recessed cistern with upper or front drive.
• Recessed cistern completely insulated against condensation.
• With factory settings, immediate rinsing is possible.
• Assembly and maintenance in the recessed cistern without tools.
• Left side or rear left supply connection.
• Pre-assembly box for moisture and dirt.
• Pre-assembly box for registration, can be trimmed.
• Equipped with guide tube for water supply for connecting toilets bidet Geberit AquaClean.
• With the possibility of fixing for electrical connection.
