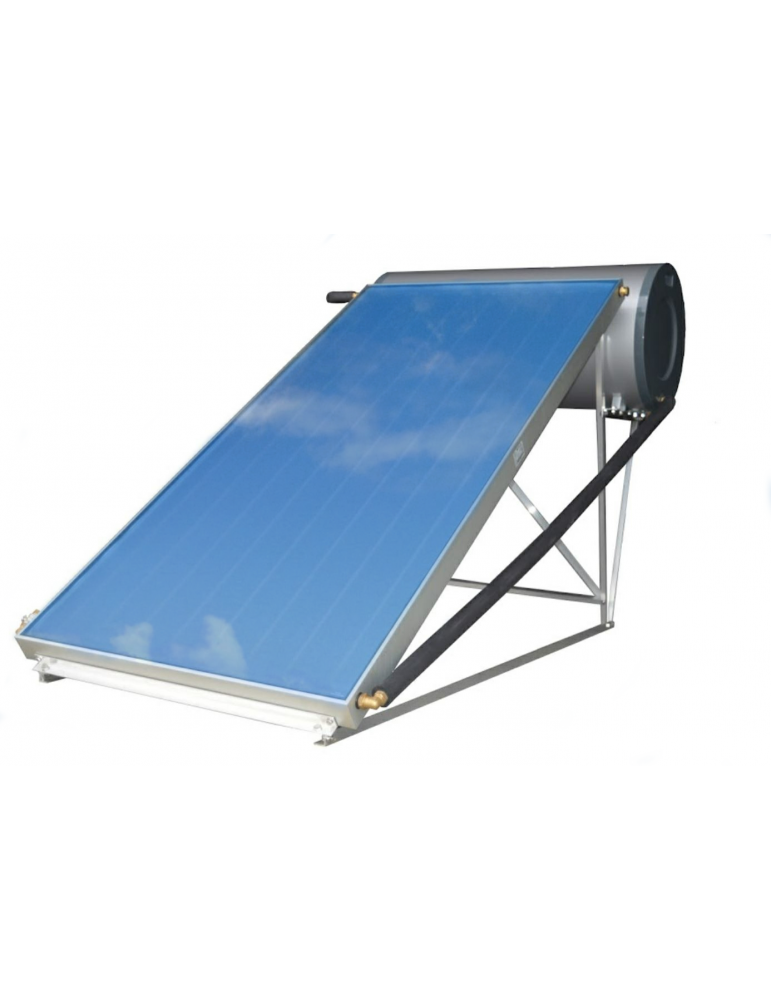

Thermosiphon Equipment INGESOL 150L

Thermosyphon Ingesol equipment of 150L For homes with 1 - 4 people; designed to supply domestic hot water in single-family homes, townhouses, apartments and in any application where the consumption of hot water is not far from the solar equipment.

Its design, with patented deposit, means that the equipment does not require maintenance since it does not need a sacrificial anode. Low visual impact thanks to the tank hidden behind the collector.

REF. TSHDBUL150HAL

Composed of:

* 1 Solar Collector INGESOL-AR

* ACS IGSC 150 UL double coil interaccumulator tank AISI 316L

* Production capacity of 200 liters of DHW * Hydraulic element kit

* Thermosyphon equipment structure for roof or flat roof. High deposit. Possibility of different angles according to architectural integration.

Characteristics:

• High performance selective absorber.
• Ultralight collector with a weight of 30 kg.
• Solar glass tempered and printed by the inner face.
• No screws or rivets.
• Lacquered aluminum bottom and aluminum profiles with marine anodizing.
• Compact CFC-free polyurethane bottom and side insulation.
• Total area 2.06 m2.
• Opening area 1.95 m2.
• Dimensions (mm): 2,020 x 1,020 x 80.
