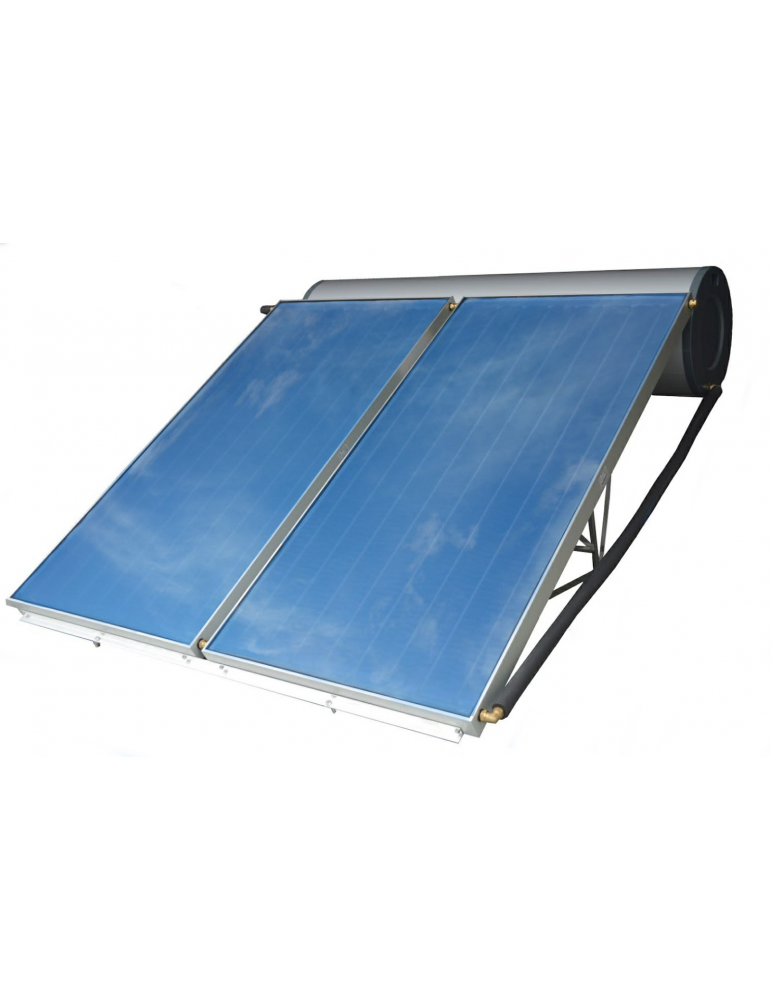

Thermosyphon Equipment INGESOL 300L

Thermosyphon Ingesol equipment of 300L for homes with 5 - 7 people; designed to supply domestic hot water in single-family homes, townhouses, apartments and in any application where the consumption of hot water is not far from the solar equipment.

Its design, with patented deposit, means that the equipment does not require maintenance since it does not need a sacrificial anode. Low visual impact thanks to the tank hidden behind the collector.

REF. TSHDBUL300HAL

Composed of:

* 2 Solar collectors INGESOL-AR

* ACS IGSC 300 UL accumulator tank with AISI 316L stainless coil

* Production capacity of 400 liters of DHW - Hydraulic Element Kit

* Thermosyphon equipment structure for roof or flat roof. Low deposit. Possibility of different angles according to integration

Characteristics:

• High performance selective absorber.
• Ultralight collector with a weight of 30 kg.
• Solar glass tempered and printed on the inner face.
• No screws or rivets.
• Lacquered aluminum bottom and aluminum profiles with marine anodizing.
• Compact CFC-free polyurethane bottom and side insulation.
• Total area 2.06 m2.
• Opening area 1.95 m2.
• Dimensions (mm): 2,020 x 1,020 x 80.
